14 November, 2017 - 11:16 Kevin West

Engineering Up-date - November 2017

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

The Unknown Warrior, Llangollen.  2nd October 2017. Photo – Kevin West

Work is continuing on the installation of parts onto the locomotive chassis.

Recent work has seen the final fitting of the four brackets and mountings for the Main Reverser Shaft, the two brackets for the Inside Expansion Link and the single bracket for the Intermediate Reverser Shaft.

  • Read more about Engineering Up-date - November 2017
12 November, 2017 - 19:41 admin

Boiler Update

The foundation ring has now been riveted to the inner firebox at LNWR Heritage at Crewe. This is the final job that LNWR has undertaken on the new Patriot Boiler before it moves to a new contractor.

Contracts were signed with our new boiler contractor on 10th November, and further details will be announced soon.

  • Read more about Boiler Update
4 August, 2017 - 20:26 Kevin West

Engineering Up-date - July 2017

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

Following the decision by LNWR Heritage to end all sub-contract work, the workload for the engineering team has increased substantially. This has impacted in several areas, including the time that would normally have been spent compiling these engineering updates. I hope that the workload will reduce in the coming months so the frequency of the reports will become more frequent.

  • Read more about Engineering Up-date - July 2017
25 May, 2017 - 08:46 Kevin West

Boiler Manufacture - May 2017

Our Chairman, David Bradshaw, was informed on Tuesday 9th May, that LNWR Heritage had decided to end all sub contract work and concentrate on its own fleet.  As a result LNWR Heritage will not be continuing work on constructing the boiler for The Unknown Warrior. The Board of the LMS Patriot project is naturally very disappointed with this decision by LNWR Heritage, the impact of which is still not clear, though it is highly likely that there will be some delays in getting the boiler completed.

  • Read more about Boiler Manufacture - May 2017
28 April, 2017 - 14:41 Kevin West

Engineering Update - April 2017

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

This report starts with the good news that Chris Collins has returned to work at Llangollen following his medical issue earlier in the year.

A different view of the Unknown Warrior inside the shed at Llangollen.  March 2017.. Photo – Kevin West

Work has continued on a number of fronts at Llangollen in the last month.

  • Read more about Engineering Update - April 2017
9 February, 2017 - 18:19 Kevin West

Engineering Update - January 2017

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

Unfortunately, I have to start this report with some very un-welcome news. Chris Collins, one of the 2 Llangollen Railway Engineering engineers that is working on The Unknown Warrior has suffered a heart attack and has subsequently spent some time in hospital. I am sure everyone will join us in wishing Chris a speedy recovery and look forward to seeing him back at Llangollen as soon as possible.

  • Read more about Engineering Update - January 2017
21 December, 2016 - 17:41 Kevin West

Engineering Update - December 2016

Locomotive Frame Assembly

As we work towards our target to be complete for 11th November 2018, the amount of work taking place at locations across the country is rising.

  • Read more about Engineering Update - December 2016
13 October, 2016 - 21:56 Kevin West

Engineering Up-date - October 2016

Locomotive Frame Assembly

Work continues on the construction of 'The Unknown Warrior' at number of locations.

  • Read more about Engineering Up-date - October 2016
20 July, 2016 - 12:55 Kevin West

Engineering Up-date - July 2016

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

Members listen to the presentation during Members Day at Llangollen Works, 25th June. Photo – Kevin West

Work is progressing at Llangollen following on from the locomotives return at the end of March.

  • Read more about Engineering Up-date - July 2016
10 June, 2016 - 10:31 Kevin West

Engineering Up-date walk round video

Our Chief Engineer has been playing with his new camcorder and made this walk round up-date video of the loco build.

https://www.youtube.com/watch?v=yvLwEUJOW_Q

  • Read more about Engineering Up-date walk round video
14 April, 2016 - 14:39 Kevin West

Engineering Up-date March 2016

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

Following on from the fitting of the Bogie at Tyseley on 4th February, work has continued on preparations to fit the Valve and Cylinder Liners.

  • Read more about Engineering Up-date March 2016
24 February, 2016 - 14:59 Kevin West

The Unknown Warrior now a 4-6-0

Following the fitting of the bogie to The Unknown Warrior at Tyseley Locomotive Works in early February 2016 we are pleased to be able to publish these photos of The Unknown Warrior.in the yard at Tyseley.

The Unknown Warrior stands in the yard at Tyseley Locomotive Works, 4th February 2016. Photos by Kevin West

  • Read more about The Unknown Warrior now a 4-6-0
13 February, 2016 - 10:14 Kevin West

Engineering Update - Jan 2016

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations.

  • Read more about Engineering Update - Jan 2016
19 January, 2016 - 08:41 Kevin West

Engineering update - December 2015

Locomotive Frame Assembly

Work continues on the construction of The Unknown Warrior at number of locations. The construction of a steam locomotive of any size is a complicated engineering task and the past few weeks have proved to be just that. While it may appear that not a lot is happening above the surface, in fact the 8 legged duck is paddling furiously although perhaps not all in the same direction!

  • Read more about Engineering update - December 2015
2 November, 2015 - 15:53 Kevin West

Engineering Update - October 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

The Unknown Warrior takes a rest at Donnington Services during its movement from Barrow Hill to Tyseley, 29th September. Photo – Kevin West

The major work of permanent fitting the cylinders and Motion Brackets to the locomotive has been completed.

  • Read more about Engineering Update - October 2015
9 September, 2015 - 17:37 Kevin West

Engineering Report - August 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

The major work of permanent fitting the cylinders to the locomotive has been completed.

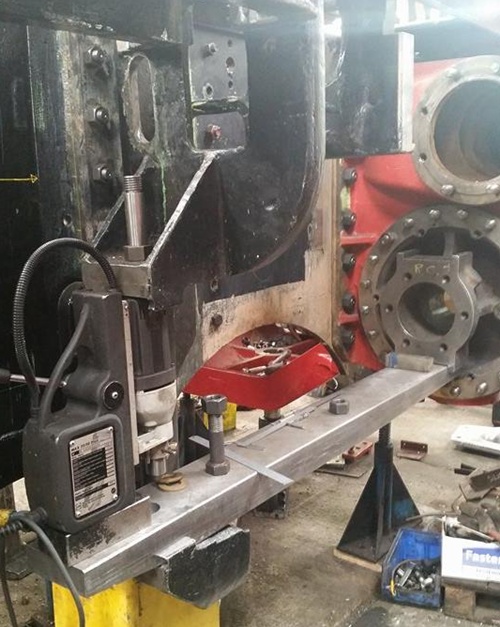

RH Motion Bracket with Bottom Slide Bar in place being drilled – Photo:- Gavin Shell

  • Read more about Engineering Report - August 2015
2 July, 2015 - 18:14 Kevin West

Engineering Report - June 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

The major work at present is the permanent fitting of the cylinders to the locomotive frame assembly.

  • Read more about Engineering Report - June 2015
5 June, 2015 - 12:33 Kevin West

Engineering Update - May 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

  • Read more about Engineering Update - May 2015
8 May, 2015 - 15:07 Kevin West

Engineering Update - May 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

  • Read more about Engineering Update - May 2015
13 March, 2015 - 16:34 Kevin West

Engineering Update - February 2015

Locomotive Frame Assembly

Work continues on a number of fronts on the construction of The Unknown Warrior.

The Unknown Warrior is a 3 cylinder locomotive after the fitting of the right hand cylinder at outside Llangollen shed. 23rd January  2015

Photo – Kevin West

  • Read more about Engineering Update - February 2015
5 March, 2015 - 18:27 Kevin West

TUBEPLATE PROGRESS

Progress continues on the construction of the boiler for The Unknown Warrior.

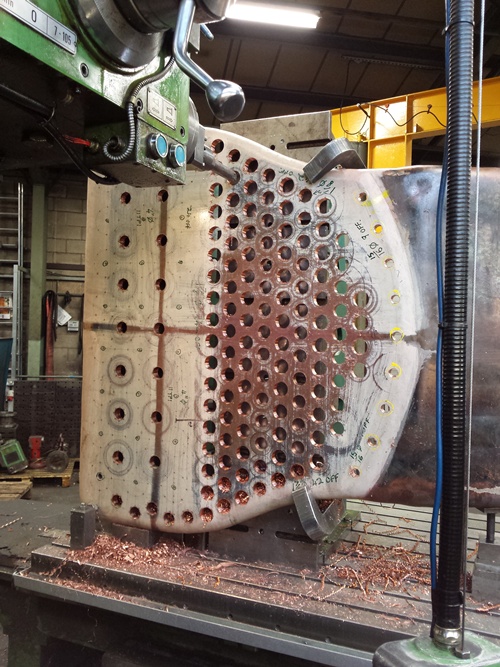

Latest work has included drilling the Firebox Tubeplate as seen here in this picture.

Picture - Oakwood Visuals

A full engineering update will follow next week.

  • Read more about TUBEPLATE PROGRESS
21 January, 2015 - 14:09 Kevin West

Engineering Update - December 2014/January 2015

Locomotive Frame Assembly

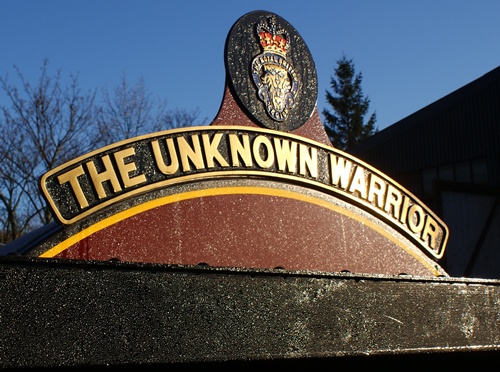

The Unknown Warrior’s frost covered nameplate catches the sun outside Llangollen shed. 3rd December 2014

Photo – Kevin West

  • Read more about Engineering Update - December 2014/January 2015
18 December, 2014 - 00:46 admin

2014 review - HELP US FINISH THE JOB

We have now reached a major turning point in the construction of 'The Unknown Warrior's' chassis, with a change in emphasis from manufacture to assembly. Much still needs to be done but with the last of the major castings now complete we are turning our attentions to the myriad of smaller parts which will be required.

  • Read more about 2014 review - HELP US FINISH THE JOB
11 November, 2014 - 17:32 Kevin West

Engineering Update - October 2014

Locomotive Frame Assembly

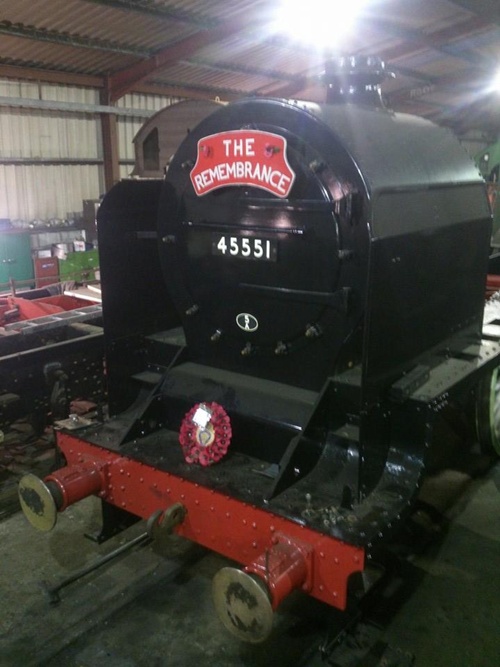

45551 in the shed at Llangollen November 2014

Photo – Tom Peacock

  • Read more about Engineering Update - October 2014
10 October, 2014 - 13:57 Kevin West

New Bogie Wheel Cast

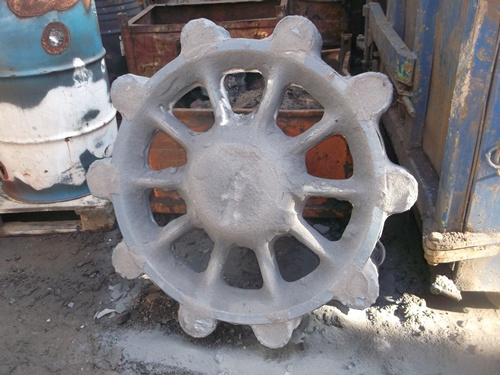

Less than a month from making the decision to manufacture a new wheelset for the locomotives bogie, rather than wait any longer for the possibility of a set from an 8F in Turkey, the first Wheel Centre has been cast.

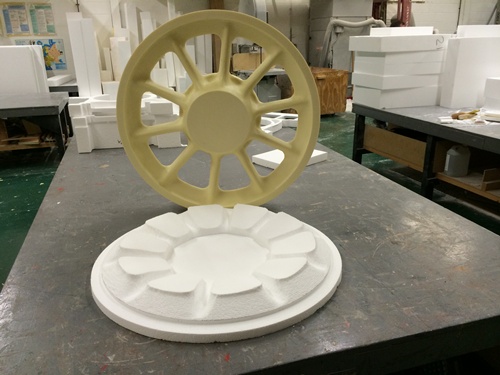

The 3D CAD data was supplied to Premier Patterns by the project's CAD Designer, Kevin West and the pattern cut in a polyurethene foam.



  • Read more about New Bogie Wheel Cast
